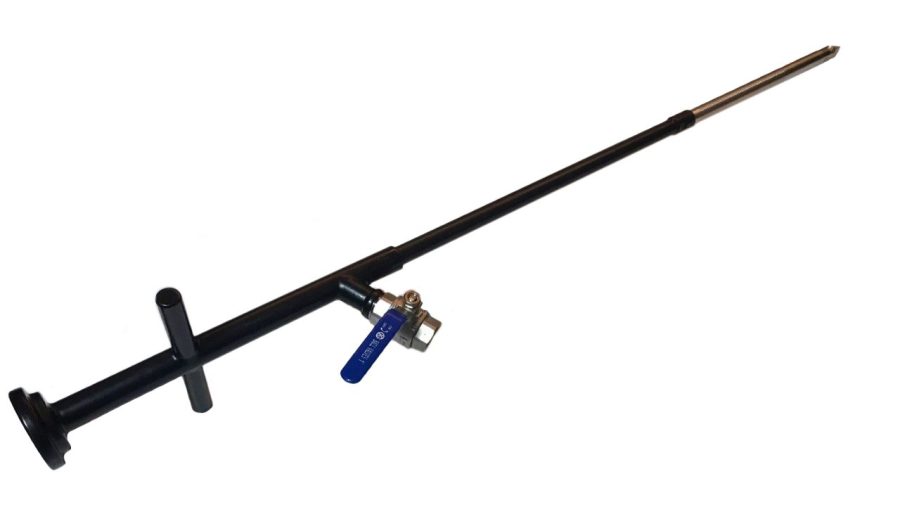

Watermist Lance (FI-WMLANCE)
The Watermist Lance (FI-WMLANCE) is a professional firefighting tool designed to enhance EV fire blanket performance by applying a fine water mist. It improves fire containment, cools the area, and reduces toxic vapors, supporting safer and more effective fire suppression.
Detailed Overview
The Watermist Lance (FI-WMLANCE) is a specialized firefighting tool designed to be used in combination with a fire blanket. Once a fire blanket has been deployed over a burning EV, the Watermist Lance sprays a fine, controlled water mist over the blanket surface.
This process:
Makes the blanket wet and more airtight
Enhances containment of flames and heat
Suppresses and limits toxic vapors
Improves overall fire control and safety
In addition, the fine mist helps cool the affected area and displace oxygen, further supporting effective fire suppression without excessive water usage.
Performance and Application
The Watermist Lance is particularly effective in EV fire incidents, where prolonged heat and toxic gases pose significant risks. When used alongside Fire Isolator fire blankets, it significantly improves containment efficiency and creates safer conditions for fire response teams.

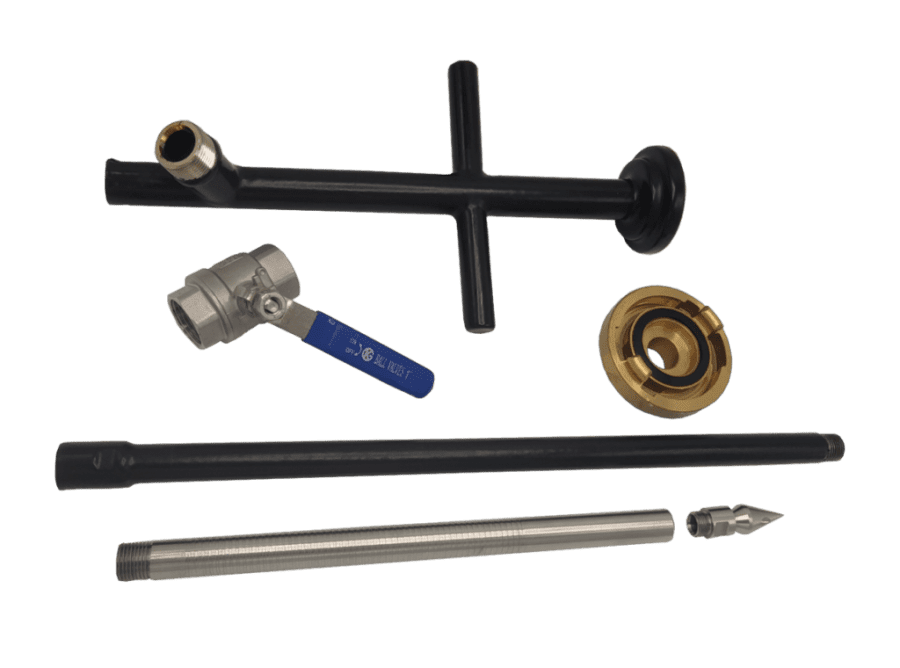

Materials and Construction
Manufactured from high-quality stainless steel (SS 304)
PE-coated top shaft for improved handling, durability, and operator safety
This robust construction ensures reliability in demanding firefighting environments, including industrial, maritime, and emergency response operations.
Testing and Certification
The Watermist Lance is:
ABS-approved
Fully compliant with SOLAS regulations II-2/10.7.3
These certifications confirm suitability for professional and maritime firefighting applications.
Connections
The Watermist Lance is available with the following connection options:
1″ male thread (without ball valve)
1″ female thread (with ball valve)
This flexibility ensures compatibility with a wide range of firefighting systems and setups.
Technical Data Sheet
| Specifications | Rating / Classification |
|---|---|
| Dimensions | 300 x 1350 x 22 ø mm |
| Lance Material | Shaft SS 304, Top PE Coated |
| Nozzle | SS 316 |
| Nominal Pressure and Flow | about 90L/min @ 8BAR Ball |
| Valve | Stainless steel |
| Impact hammer | 45# ( plating nickel on surface ) |
| Drill size | ø 19mm, 77mm in depth |
| Length of Impact Hammer | 478mm |
| Connection end | o 1 1/4” male thread without the Ball valve o 1 1/4” female thread with the Ball valve |
